Max. Aperture              : F2.0
Field of View                 : H: 99°; V: 55°; D: 117°
Human Detectio          :Yes
Video Compression    : H.265
Video Frame Rate        : Main stream: 2304 × 1296@(1-25/30 fps)
                                                : sub stream: 640 × 360@(1-25/30 fps)
                                                :The values above are the max. frame rates of each stream; for multiple streams,the values will be subjected to the total encoding capacity.
Resolution                      : 3M (2304 × 1296); nHD (640 × 360)
Video Bit Ra                   : H.265: 80 kbps–4096 kbps
Day/Night                       : Auto(ICR)/Color/B/W
WDR                                 : DWDR
Motion Detection      : Yes
Image Rotation           : 0°/180°
Built-in MIC                  : Yes, built-in Mic
Built-in Speaker          : Yes, built-in speaker
Audio Compression     : G.711a
Wi-Fi                                   : EEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G
Storage                              : Micro SD card (up to 256 GB)
Management Software  : DMSS
Mobile Client                   : iOS;Android
Power Supply                  : 5 VDC, 1 A
                                                 : Power Consumption
Basic: 1.49 W;                 : Max.: 2.48 W (H.265+ IR intensity)

• Image Sensor           : 1/2.7" CMOS
• Max. Resolution     : 2880 (H) × 1620 (V)
• Electronic Shutter Speed   : Auto/Manual 1/3 s–1/100,000 s
• Illumination Distance      : Up to 10 m (32.81 ft) (IR)
• Illuminator On/Off Control  : Auto
• Illuminator Number         : 1 (IR LED)
• Angle Adjustment            : Pan: 0° to 360°; Tilt: -10° to 70
• Max. Aperture                    : F2.0
• Field of View                       : H: 90°; V: 49°; D: 106°
• Human Detection      : Yes
• Video Compression  : H.265
• Video Frame Rate  : Main stream: 2880 × 1620@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) *The values above are the max.     frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Resolution   : 5M (2880 × 1620); nHD (640 × 360)
• Video Bit Rate  : H.265: 80 kbps–4096 kbps
• Day/Night   : Auto(ICR)/Color/B/W
• WDR  : DWDR
• Motion Detection  : Yes
• Image Rotation  : 0°/180°
• Built-in MIC  : Yes, built-in Mic
• Built-in Speaker  : Yes, built-in speaker
• Audio Compression  : G.711a
• Wi-Fi IEEE  : 802.11b/g/n 2.4–2.4835 GHz, 2.4 G
• Storage  : Micro SD card (up to 256 GB)
• Management Software : DMSS
• Mobile Client  : iOS;Android
• Certifications  : CE
• Power Supply  : 5 VDC, 1 A
• Power Consumption  : Basic: 1.65 W; Max.: 2.75 W (H.265+ IR intensity)
• Operating Temperature  : –10 °C to +45 °C (14 °F to +113 °F)
• Operating  : Humidity ≤95%
• Casing Material  : Plastic
• Product Dimensions  : Φ68 mm × 31.9 mm × 119.2 mm (2.68" × 1.26" × 4.69")
• Net Weight  : 95 g (0.21 lb)

> 3-MP 1/3.2" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 3 MP (2304 × 1296)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. IR illumination distance is 10 m.

> Supports max. 256 G Micro SD card; built-in Mic; built-in speaker.

> 5 VDC power supply.

> Supports Wi-Fi.

> Supports motion detection, human detection

> Resolution : 5MP (2960x1668)
> Lens       : 3.6mm fixed lens
> IR Range   : Up to 10 meters
> Audio      : Two-way audio (microphone and speaker)
> Compression: H.265 video compression
> Pan & Tilt : 0° to 355° pan and -5° to +80° tilt
> AI Features: Human detection, motion detection
> Storage    : Supports Micro SD card (up to 256GB)
> Frame Rate : Up to 30fps
> Wireless   : Supports Wi-Fi
> Day/Night  : Auto (ICR)/Color/B/W

< 3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network   : Camera 1/3.2" CMOS

< Max. Resolution   : 2304 (H) × 1296 (V)

< Electronic Shutter Speed   : Auto/Manual 1/3 s–1/100,000 s

< Illumination Distance   : Up to 10 m (32.81 ft) (IR)

< Illuminator On/Off Control   : Auto

< Illuminator Number   : 1 (IR LED)

< Angle Adjustment   : Pan: 0° to 350° ,Tilt: -5° to 80°

< Max. Aperture   : F2.0

< Field of View   : 2.8 mm: H: 99°; V: 55°; D: 117°, 3.6 mm: H: 79°; V: 43°; D: 94°

< Human Detection   : Yes

< Video Compression   : H.265

< Video Frame Rate   : Main stream: 2304 × 1296@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps)
                      *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

< Resolution   : 3M (2304 × 1296); nHD (640 × 360)

< Video Bit Rate   : H.265: 40 kbps–4096 kbps

< Day/Night   : Auto(ICR)/Color/B/W

< WDR   : DWDR

< Motion Detection   : Yes

< Image Rotation   : 0°/180°

< Built-in MIC   : Yes

< Built-in Speaker   : Yes

< Audio Compression   : G.711a

< Network Port   : RJ-45 (10/100 Base-T)

< Wi-Fi   : IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G,≤20dBm@2400-2483.5MHz

< Storage   : Micro SD card (up to 256 GB)

< Management Software   : DMSS

< Mobile Client   : iOS;Android

< Certifications   : CE

< Power Supply   : 5 VDC, 1 A

< Power Consumption   : Basic: 1.6 W
                                       : Max.: 3.8 W (live + IR + PT rotation)

< Operating Temperature   : –10 °C to +45 °C (+14 °F to + 113 °F)

< Operating Humidity   : ≤95%

< Casing Material   : Plastic

< Product Dimensions   : φ84 mm × 123.8 mm (φ3.31" × 4.87")

< Net Weight   : 206.5 g (0.46 lb)





< Image Sensor  : 1/3" CMOS

< Max. Resolution  : 2880 (H) × 1620 (V)

< Electronic Shutter Speed  : Auto/Manual 1/3 s–1/100,000 s

< Illumination Distance  : Up to 10 m (32.81 ft) (IR)

< Illuminator On/Off Control  ; Auto

< Illuminator Number  : 1 (IR LED)

< Angle Adjustment  : Tilt: -5° to 80°, Pan: 0° to 350°

< Max. Aperture  : F2.0

< Field of View  : H: 74°; V: 41°; D: 88°

< Human Detection  : Yes

< Video Compression  : H.265

< Video Frame Rate  : Main stream: 2880 × 1620@(1-25/30 fps)sub stream: 640 × 360@(1-25/30 fps)The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

< Resolution  : 5M (2880 × 1620); nHD (640 × 360)

< Video Bit Rate  : H.265: 40 kbps–4096 kbps

< Day/Night  : Auto(ICR)/Color/B/W

< WDR  : DWDR

< Motion Detection  : Yes

< Image Rotation  : 0°/180°

< Built-in MIC  : Yes

< Built-in Speaker  : Yes

< Audio Compression  : G.711a

< Network Port  : RJ-45 (10/100 Base-T)

< Wi-Fi  : IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G

< Storage  : Micro SD card (up to 256 GB)

< Management Software  : DMSS

< Mobile Client  : iOS;Android

< Certifications  : CE

< Power Supply  : 5 VDC, 1 A, Power Consumption

< Basic: 1.9 W;  : Max.: 3.8 W (live + IR + PT rotation)

< Operating Temperature  : –10 °C to +45 °C (+14 °F to + 113 °F)

< Operating Humidity  : ≤95%

< Casing Material  : Plastic

< Product Dimensions  : φ84 mm × 123.8 mm (φ3.31" × 4.87")

< Net Weight  : 206.5 g (0.46 lb)

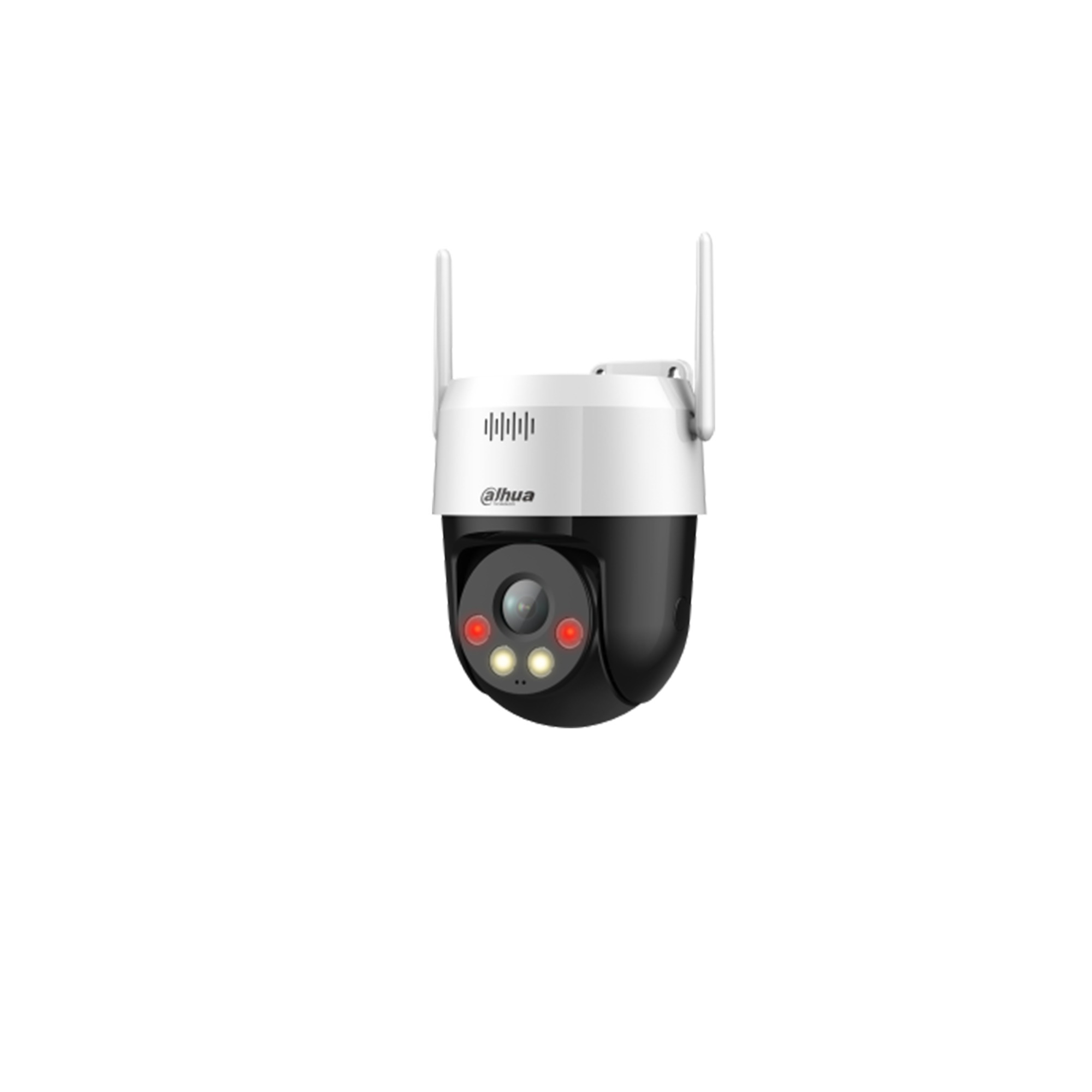

< Image Sensor  : 1/2.7"CMOS

< Max. Resolution  : 2304(H) x 1296(V)

< Electronic Shutter Speed  : Auto/Manual 1/3 s-1/100,000 s

< Illumination Distance  : Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm Light)

< Illuminator On/Off Control  : Auto

< Illuminator Number  :  2 (IR LED); 2 (Warm light)

< Angle Adjustment  :  Pan: 0°–355°; Tilt: 0°–90°

< Max. Aperture  : F1.6

< Field of View  : H: 87;V:44°; D: 105°

< Video Compression  : H.265

< Video Frame Rate  :  Main stream: 2304 × 1296@(1-25/30 fps);sub stream: 640 × 360@(1-25/30 fps);The values above are the max. frame rates of each stream; for multiple streams, the values will be, subjected to the total encoding capacity.

< Resolution  : 3M (2304 × 1296); nHD (640 × 360)

< Video Bit Rate  : H.265: 80 kbps–4096 kbps

< Day/Night  : Auto(ICR)/Color/B/W

< WDR  : DWDR

< Image Rotation  : 0°/180°

< Built-in MIC  :  Yes, built-in Mic

< Built-in Speaker : Yes, built-in speaker

< Audio Compression  : G.711a

< Network Port  : RJ-45 (10/100 Base-T)

< Wi-Fi  : IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G

< Storage  : Micro SD card (up to 256 GB)

< Management Software  : DMSS

< Mobile Client  : iOS;Android

< Power Supply : 12 VDC

< Power Consumption  :  Basic: 1.56 W; Max.: 4.56 W (H.265+warm light on)

< Operating Temperature  : –20 °C to +50 °C (–4 °F to +122 °F)

< Operating Humidity  : ≤95%

< Casing Material  : Plastic

< Product Dimensions  :  116 mm × 138 mm × 139 mm (4.57" × 5.43" × 5.47") (L × W × H)

<  Net Weight  :  425 g (0.94 lb)

<  Image Sensor  : 1/3" CMOS

<  Max. Resolution  : 2880 (H) × 1620 (V)

<  Electronic Shutter Speed  :  Auto/Manual 1/3 s–1/100,000 s

<  Illumination Distance  :  Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm Light)

<  Illuminator On/Off Control  : Auto

<  Illuminator Number  : 2 (IR LED); 2 (Warm light)

<  Angle Adjustment  : Pan: 0°–355°; Tilt: 0°–90

<  Max. Aperture  : F1.6

<  Field of View  : H:78°;V:40°; D: 93°

<  Video Compression  : H.265

<  Video Frame Rate  : Main stream: 2880 × 1620@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) The values above are the max. frame rates of      each stream; for multiple streams, the values will be subjected to the total encoding capacity.

<  Resolution  : 5M (2880 × 1620); nHD (640 × 360)

<  Video Bit Rate  : H.265: 80 kbps–4096 kbp

<  Day/Night  : Auto(ICR)/Color/B/W

<  WDR  : DWDR

<  Motion Detection  : Yes

<  Smart Illumination  : Yes

<  Image Rotation  : 0°/180°

<  Built-in MIC  : Yes, built-in Mic

<  Built-in Speaker  : Yes, built-in speaker

<  Audio Compression  : G.711a

<  Network Port  : RJ-45 (10/100 Base-T)

<  Wi-Fi  : IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G

<  Storage  : Micro SD card (up to 256 GB)

<  Management Software  : DMSS

<  Mobile Client  : iOS;Android

<  Power Supply  : 12 VDC, 1 A

<  Power Consumption  : Basic: 1.68 W Max.: 4.56 W (H.265+warm light on)

<  Operating Temperature  : –20 °C to +50 °C (–4 °F to +122 °F)

<  Operating Humidity  : ≤95%

<   Casing Material  : plastic

<  Product Dimensions  : 116 mm × 138 mm × 139 mm (4.57" × 5.43" × 5.47") ;(L × W × H)

<  Net Weight  : 425 g (0.94 lb)

> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.

> Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 150 m in an open area.

> Supports max.256 G Micro SD card.Built-in MIC and speaker.

> 12 VDC power supply.

> IP67 protection.

> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2560 × 1440) @20 fps, and max.supports 3 MP (2304 × 1296) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.

> Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 150 m in an open area.

> Supports max.256 G Micro SD card. Built-in MIC and speaker.

> 12 VDC power supply.

> IP67 protection.

< Image Sensor  : 1/2.8" CMOS
< Pixel  : 3 MP
< Max. Resolution  : 2304 (H) × 1296 (V)
< Electronic Shutter  : Speed 1 s–1/100,000 s
< Illuminator Number  : 2 (IR light); 2 (warm light)
< Illumination Distance  : 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)
< Focal Length  : 4.0 mm
< Max. Aperture  : F2.0
< Field of View  : 4.0 mm: H: 86.8°; V: 47.1°; D: 102.2°
< Close Focus Distance  : 4.0 mm: 0.6 m (1.97 ft)
< Light Warning  : Warm light warning ; Flash duration: 5 s–30 s ; Flash frequency: high, medium, low
< Sound Warning  : Offers 1 sound alarm and 10 custom sound alarms can be imported ; Sound can be set from 0%–100% ; Play times can be set from 1-10.
< Video Compression  : Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream 1)
< Resolution  : 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280× 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);CIF (352 × 288/352 × 240)
< Video Frame Rate  : Main stream: 3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
< Video Bit Rate  : H264: 88 kbps-8,192 kbps ; H265: 35 kbps-8,192 kbps
< Day/Night  : Auto (ICR); Color/B/W
< WDR  : DWDR
< Image Rotation  : 180°
< Network Port  : RJ-45 (10/100 Base-T)
< Wi-Fi Standard  : IEEE802.11b;IEEE802.11g;IEEE802.11n
< Wi-Fi Frequency Range  : 2.4000-2.4835 GHz
< Power Transmission  : ≤20 dBm@2400–2483.5 MHz
< Storage  : Micro SD card (256GB); FTP
< Browser  : IE: IE 7 and later versions; Chrome; Firefox; Safari
< Management Software  : Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player
< Mobile Client  : iOS;Android
< Power Supply   : 12 VDC, 1 A ± 10% (included)
< Operating Temperature  :  –30 °C to +55 °C (–22 °F to +131 °F)
< Operating Humidity   : ≤95%
< Product Dimensions  : 140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
< Net Weight  :  0.5 kg (1.10 lb)
< Gross Weight  : 1 kg (2.20 lb)

< Image Sensor  : 1/2.8"CMOS
< Pixel  : 5 MP
< Max. Resolution  : 2560(H)x1920(V)
< Electronic Shutter Speed  :  1 s–1/100,000 s
< Illuminator Number  :  2 (IR light); 2 (warm light)
< Focal Length  : 4.0 mm
< Max. Aperture  : F1.6
< Field of View  : 4.0 mm: H: 80.4°; V: 58.1°; D: 104.8°
< Close Focus Distance  :  4.0 mm: 0.3 m (0.98 ft)
< Pan/Tilt Range  : Pan: 0° to 345°; Tilt: 0° to +80°
< Preset  : 300
< Light Warning  : Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
< Sound Warning  : Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10.
< Video Compression  : Smart H.265+;H.265;Smart H.264+;H.264B;H.264M; H.264H;MJPEG(Sub Stream 1)
< Resolution  : 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
< Video Frame Rate : Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)Sub stream 1: D1/VGA/CIF@(1–25/30 fps)Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
 Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
< Video Bit Rate  : H264: 104 kbps-8,192 kbps; H265: 41 kbps-8,192 kbps
< Day/Night  : Auto (ICR); Color/B/W
< WDR  : DWDR
< Image Rotation  : 180°
< Audio Compression  : PCM; G.711a; G.711Mu; G.726;
< Network Port  : RJ-45 (10/100 Base-T)
< Wi-Fi Standard  : IEEE802.11b;IEEE802.11g;IEEE802.11n
< Wi-Fi Frequency Range  : 2.4 GHz
< Storage  : Micro SD card (256 GB); FTP
< Browser  : IE: IE 7 and later versions; Chrome; Firefox; Safari
< Management Software  : Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player
< Mobile Client  : iOS;Android
< Power Supply  : 12 VDC, 1 A ± 10% (included)
< Operating Temperature  : –30 °C to +55 °C (–22 °F to +131 °F)
< Operating Humidity  : ≤95%
<  Product Dimensions  : 140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
< Net Weight  : 0.5 kg(1.10lb)
< Gross Weight  : 1kg(2.20lb)


· 1/2.8" 2Megapixel CMOS.

· Max. 25/30 fps@1080p.

· Human detection.

· Tripwire, intrusion.

· H.265 encoding.

· Wi-Fi.

· Two-way talk.

· Sound and light alarm.

· IR and white light, three night view modes.

· IP66.

> 1/2.8" 5Megapixel STARVIS™ CMOS.

> Max. 20 fps@5MP.

> Human detection.

> Tripwire, intrusion.

> H.265 encoding.

> Wi-Fi.

> Two-way audio.

> Sound and light alarm.

> IR and white light, three night view modes.

> IP66.

< Image Sensor  : 1/3.2'' CMOS

< Max. Resolution  : 2304 (H) × 1296 (V)

< Illumination Distance  : Up to 30 m (98.43 ft) (IR)

< Illuminator Number  : 2 (IR LED)

< Angle Adjustment  : 0° to 15°

< Lens Type  : Fixed-focal

< Focal Length  : 3.6 mm

< Max. Aperture  : F2.0

< Field of View  : H: 79°; V: 43°; D: 94°

< Image Sensor  : 1/3.2'' CMOS

< Max. Resolution  : 2304 (H) × 1296 (V)

< Illumination Distance  : Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light)

< Illuminator Number  : 2 (IR LED); 1 (Warm light)

< Angle Adjustment  : Pan: 0° to 349° ; Tilt: –5° to 90°

< Lens Type  : Fixed-focal

< Focal Length  : 3.6 mm

< Max. Aperture  : F2.0

< Field of View  : H: 79°; V: 43°; D: 94°

< Video Compression  : H.265

< Video Frame Rate  : Main stream: 2304 × 1296@15 fps ; sub stream: 640 × 360@15 fps ; *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

< Video Bit Rate  : H.265: 512 kbps–4096 kbps

< Day/Night  : Auto(ICR)/Color/B/W

< WDR  : DWDR

< Motion Detection  : Yes

< Image Rotation  : 0°/180°

< Built-in MIC  : Yes, built-in Mic

< Built-in Speaker  : Yes, built-in speaker

< Audio Compression  : G.711a

< Network Port  : RJ-45 (10/100 Base-T)

< Wi-Fi  : IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz

< Wi-Fi Pairing  : Bluetooth pairing

< Storage  : Micro SD card (support max. 256 GB)

< Management Software  : DMSS

< Mobile Client  : iOS;Android

< Certifications  : CE

< Power Supply  : 5 VDC

< Power Consumption  : Basic: 2.3 W ; Max.: 5.2 W (pulling stream+ IR + PT rotation)

< Operating Temperature  : –10 °C to +45 °C (–4 °F to +113 °F)

< Operating Humidity  : ≤95% (RH), non-condensing

< Casing Material  : Plastic

< Product Dimensions  : Φ80.9 mm × 125.7mm (3.19" × Φ4.95")

< Net Weight  : 233 g (0.51 lb)

< Image Sensor  : 1/3" CMOS

< Max. Resolution  : 2880 (H) × 1620 (V)

< Illumination Distance  : Up to 30 m (98.43 ft) (IR)

< Illuminator Number  : 2 (IR LED)

< Angle Adjustment  : 0° to 15°

< Lens Type  : Fixed-focal

< Focal Length  : 3.6 mm

< Max. Aperture  : F2.0

< Field of View  : H: 86°; V: 46°; D: 104°

< Image Sensor  : 1/3" CMOS

< Max. Resolution  : 2880 (H) × 1620 (V)

< Illumination Distance  : Up to 30 m (98.43 ft) (IR);Up to 30 m (98.43 ft) (Warm light)

< Illuminator Number  : 2 (IR LED); 1 (Warm light)

< Angle Adjustment  : Pan: 0° to 349° ; Tilt: –5° to 90°

< Lens Type  : Fixed-focal

< Focal Length  : 3.6 mm

< Max. Aperture  : F2.0

< Field of View  : H: 86°; V: 46°; D: 104°

< Video Compression  : H.265

< Video Frame Rate  : Main stream: 2880 × 1620@15 fps ; sub stream: 640 × 360@15 fps ; *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

< Video Bit Rate  : H.265: 768 kbps–4096 kbps

< Day/Night  : Auto(ICR)/Color/B/W

< WDR  : DWDR

< Motion Detection  : Yes

< Image Rotation  : 0°/180°

< Built-in MIC  : Yes, built-in Mic

< Built-in Speaker  : Yes, built-in speaker

< Audio Compression  : G.711a

< Network Port  : RJ-45 (10/100 Base-T)

< Wi-Fi  : IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz

< Wi-Fi Pairing  : Bluetooth pairing

< Storage  : Micro SD card (support max. 256 GB)

< Management Software  : DMSS

< Mobile Client  : iOS;Android

< Certifications  : CE

< Power Supply  : 5 VDC

< Power Consumption  : Basic: 2.5 W  ; Max.: 5.4 W (pulling stream+ IR + PT rotation)

< Operating Temperature  : –10 °C to +45 °C (–4 °F to +113 °F)

< Operating Humidity  : ≤95% (RH), non-condensing

< Casing Material  : Plastic

< Product Dimensions  : Φ80.9 mm × 125.7mm (3.19" × Φ4.95")

< Net Weight  : 233 g (0.51 lb)

> 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> The antenna offers 2.4G Wi-Fi with a range of 80 m.
> Supports max. 256 G Micro SD card.Built-in MIC.
> 12 VDC power supply.
> IP67 protection.

> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.

> Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 120 m in an open area.

> Supports max.256 G Micro SD card.Built-in MIC and speaker.

> 12 VDC power supply.

> IP67 protection.

· 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.

· Outputs max. 2 MP (1920 × 1080)@25/30 fps.

· H.265 codec, high compression rate, ultra-low bit rate.

· Built-in warm light, and the max. illumination distance is 30 m.

· SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

· DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

· Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and SMD(human).

· Supports max. 256 G Micro SD card; built in Mic.

· 12 VDC power supply. · IP67 protection. · Support Human Detection.

· 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.

· Outputs max. 2 MP (1920 × 1080)@25/30 fps.

· H.265 codec, high compression rate, ultra-low bit rate.

· Built-in warm light, and the max. illumination distance is 30 m.

· SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

· DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

· Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and SMD(human).

· Supports max.256 G Micro SD card; built in Mic.

· 12 VDC power supply. · IP67 protection. · Support Human Detection.

> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2560 × 1440) @20 fps, and max.supports 3 MP (2304 × 1296) @25 fps/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.

> Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 120 m in an open area.

> Supports max.256 G Micro SD card. Built-in MIC and speaker.

> 12 VDC power supply.

> IP67 protection.

4-MP 1/3" CMOS image sensor, low luminance, and high definition image.

· Outputs max. 4 MP (2560 ×1440)@25/30 fps.

· H.265 codec, high compression rate, ultra-low bit rate.

· Built-in warm light, and the max. illumination distance is 30 m.

· SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

· DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

· Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access and SMD(human).

· Supports max.256 G Micro SD card; built in Mic. · 12 VDC power supply.

· IP67 protection.

· Supports human detection.
